多機能なスライサーであるので、3Dプリンターに関係する部分のみに絞ってみた。
項目 | パネル | 説明 |
---|---|---|

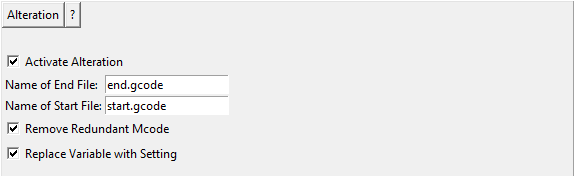

Alterion | ![]() |
■Activate Alterationスイッチ ■Name of End File : 終了時のG-codeファイル名 ■Name of Start File : 開始時のG-codeファイル名 ■Remove Redundant Mcodeスイッチ : ■Replace Variable with Settingスイッチ : |

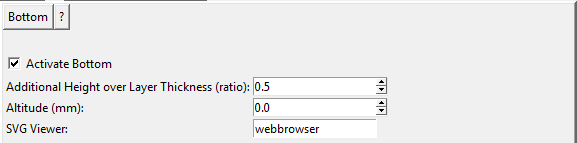

Bottom 底面 |
![]() |
■Activate Bottomスイッチ ■Additional Height over Layer Thickness(ratio) : 造形ピッチ掛率 ■Altiude(mm) : 加算厚 ■SVG Viewer : |

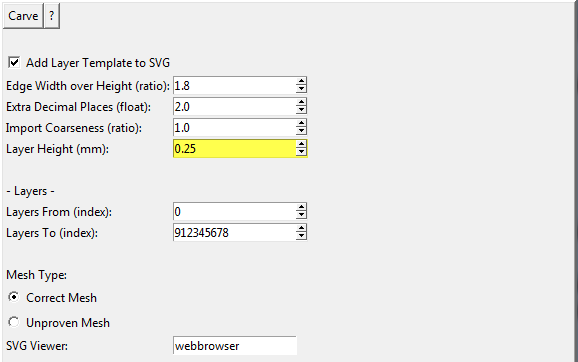

Carve | ![]() |
■Add Layer Temp;ate to SVGスイッチ ■Edge Width over Height(ratio) : ■Extra Decimal Places(float) : ■Inport Coarseness(ratio) : ■Layer Height(mm) : 積層ピッチ - Layers - ■Layers From(index) : 開始番号 ■Layers To(index) : 最終番号 ■Mesh Type : Cerrect Mesh / Unproven Mesh ■SVG Vewer : |

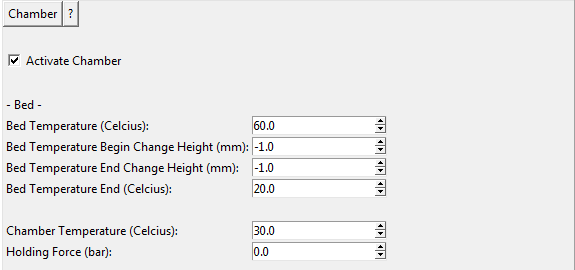

Chamber | ![]() |
■Activate Chamberスイッチ - bed - ■Bed Temperature(Celcius) : ■Bed Temperature Begin Change Height(mm) : ■Bed Temperature End Change Height(mm) : ■Bed Temperature End(Celcius) : ■Chamber Temperature(Celcius) : ■Holding Force(bar) : |

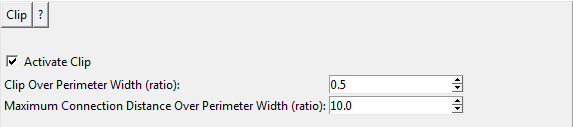

Clip | ![]() |
■Activate Clipスイッチ ■Clip Over Perimeter Width(ratio) : ■Maximum Connection Distance Over Perimeter Width(ratio) : |

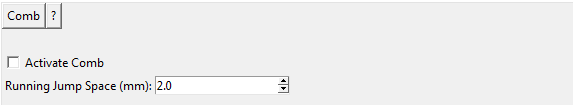

Comb | ![]() |
■Activate Combスイッチ ■Running Jump Space(mm) : |

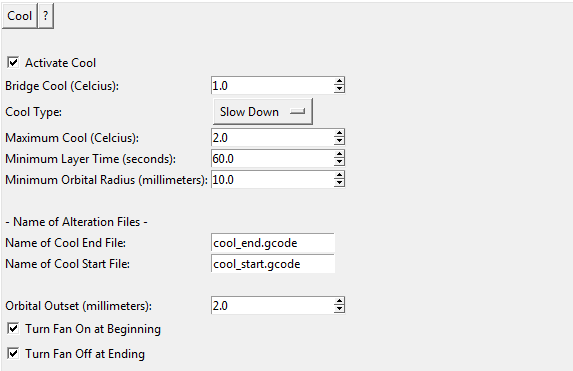

Cool 冷却 |
![]() |
■Activate Coolスイッチ ■Birdge Cool(Celcius) : ■Cool Type : ■Maximum Cool(Celcius) : ■Minimum Layer Time(seconds) : ■Minimum Orbital Radius(millimeters) : - Name of Alteration Files - ■Name of Cool End File : 冷却終了G-codeファイル名 ■Name of Cool Start File : 冷却開始G-codeファイル名 ■Orbital Outset(millimeters) : ■Turn Fan On at Beginningスイッチ ■Turn Fan Off at Endingスイッチ |

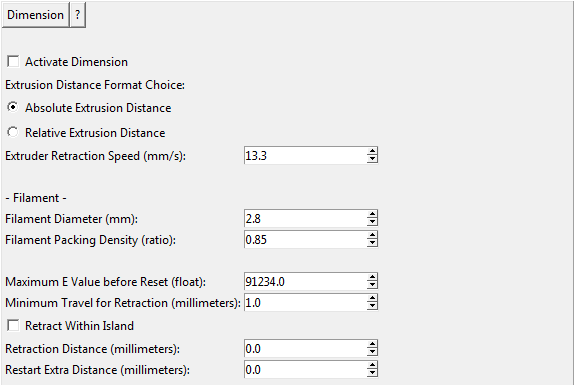

Dimension | ![]() |
■Activate Dimensionスイッチ - Filament - |

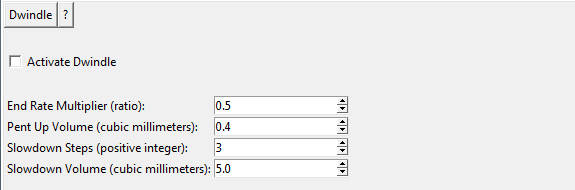

Dwindle | ![]() |
■Activate Dwindleスイッチ |

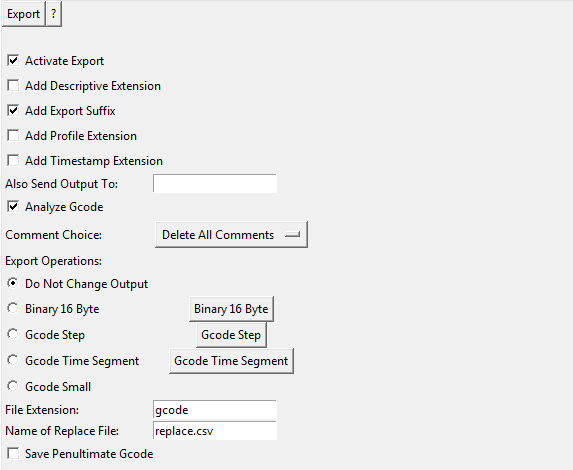

Export | ![]() |
■Activate Exportスイッチ ■Add Descriptive Externsionスイッチ ■Add Export Suffixスイッチ ■Add Profile Extensionスイッチ ■Add Timestamp Extensionスイッチ ■Also Send Output To : ■Analyze Gcodeスイッチ ■Comment Choice : ■Export Operations : Do Not Change Output / Binary 16 Byte / Gcode Step / Gcode Time Segment / Gcode Samll ■File Extension : ■Name of Replace File : ■Save Penultimate Gcodeスイッチ |

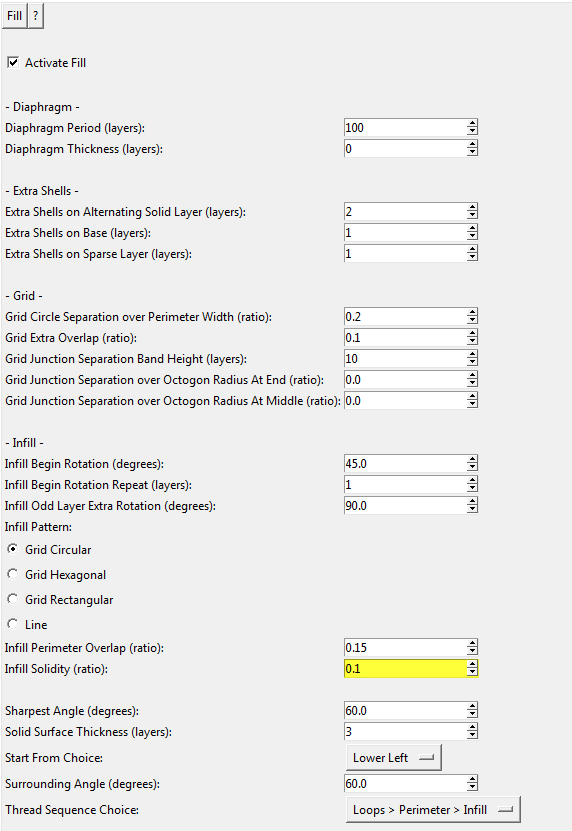

Fill | ![]() |
■Activate Fillスイッチ - Diaphragm - ■Diaphragm Period(layers) : ■Diaphragm Thickness(layers) : - Extra Shells - ■Extra Shells on Alternatiing Solid Layer(layers) : ■Extra Shells on Base(layers) : ■Extra Shells on Sparse Layer(layers) : - Grid - ■Grid Circle Separation over Perimeter Width(ratio) : ■Grid Extra Overlap(ratio) : ■Grid Junction Separation Band Height(layers) : ■Grid Junction Separation over Octogon Radius At End(ratio) : ■Grid Junction Separation over Octogon Radius At Middle(ratio) : - Infill - ■Infill Begin Rotation(degrees) : インフィル開始角度 ■Infill Begin Rptation Repeat(layers) : インフィル開始繰り返しレイヤ数 ■Infill Odd Layer Extra Rotation(degrees) : インフィルのもう片方のずらし角度 ■Infill Pattern : インフィルのパターン Grid Circular / Grid Hexagonal / Grid Rectangular / Line ■Infill Perimeter Overlap(ratio) : インフィルのオーバーラップ率 ■Infill Solidity(ratio) : インフィルの充填率 ■Sharpest Angle(degrees) : ■Solid Surface Thickness(layers) : ■Start From Choice : ■Surrounding Angle(degrees) : ■Thrad Sequence Choice : 造形順序指定 |

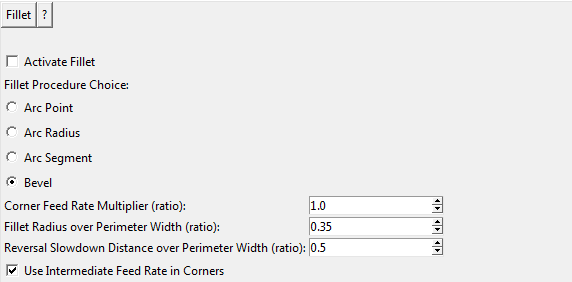

Fillet | ![]() |
■Activate Filletスイッチ |

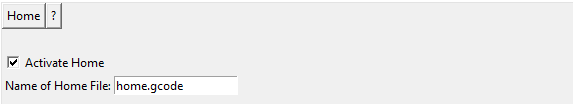

Home | ![]() |
■Activate Homeスイッチ ■Name of Home File : ホーム定義G-codeファイル名 |

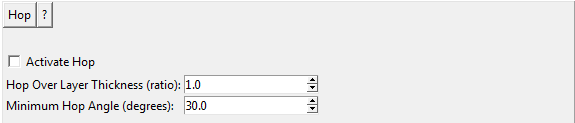

Hop | ![]() |
■Activate Hopスイッチ |

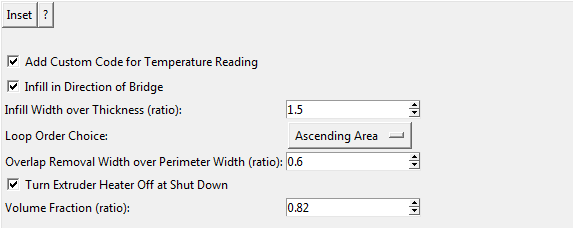

Inset | ![]() |
■Add Custom Code for Temperature Readingスイッチ ■Infill in Direction of Bridgeスイッチ ■Infill Width over Thickness(ratio) : ■Loop Order Choice : ■Overlap Removal Width over Perimeter Width(ratio) : ■Turn Extruder Heater Off at Shut Downスイッチ ■Volume Fraction(ratio) : |

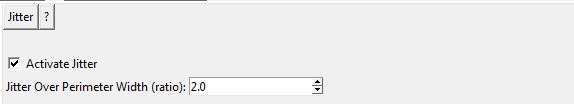

Jitter | ![]() |
■Activate Jitterスイッチ ■Jitter Over Perimeter Widht(ratio) : |

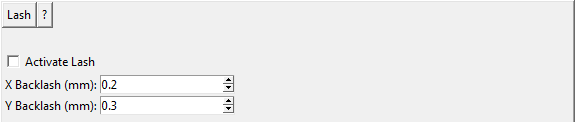

Lash | ![]() |
■Activate Lashスイッチ |

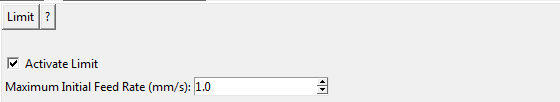

Limit | ![]() |
■Activate Limitスイッチ ■Maximum Initial Feed Rate(mm/s) : |

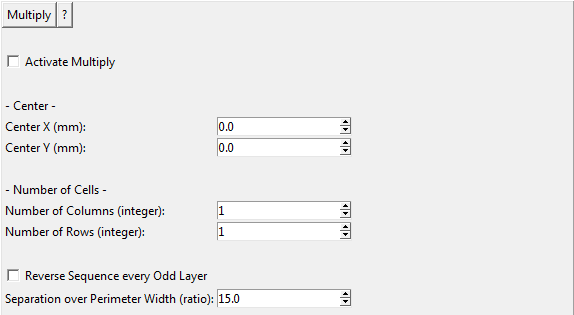

Multiply | ![]() |
■Activate Multiplyスイッチ |

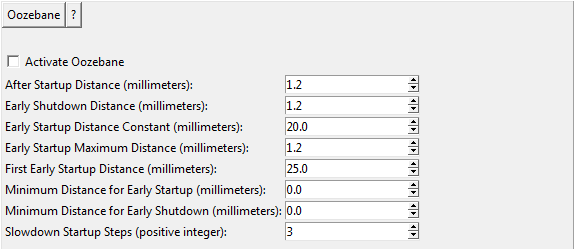

Oozebane | ![]() |
■Activate Oozebaneスイッチ |

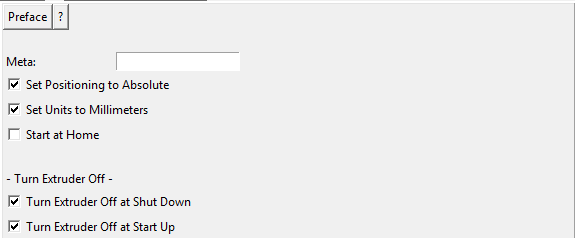

Preface | ![]() |
■Meta : ■Set Positioning to Absoluteスイッチ ■Set Units to Millimerersスイッチ ■Start at Homeスイッチ - Turn Extruder Off - ■Turn Exrruder Off at Shut Downスイッチ ■Turn Extruder Off at start Upスイッチ |

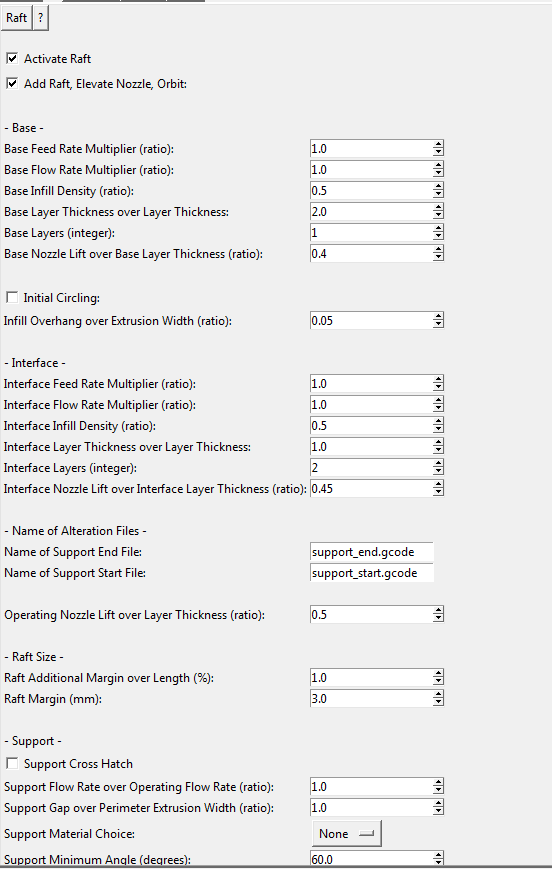

Raft ラフト |
![]() |
■Activate Raftスイッチ ■Add Raft,Elevate Nozzle,Orbitスイッチ - Base - ■Base Feed Rate Multiplier(ratio) : ■Base Flow Rate Multiplier(ratio) : ■Base Infill Density(ratio) : ■Base Layer Thickness over Layer Thickness : ■Base Layers(integer) : ■Base Nozzle Lift over Base Layer Thickness(ratio) : ■Initial Circlingスイッチ ■Infill Overhang Over Extrusion Width(ratio) : - Interface - ■Interface Feed Rate Multiplier(ratio) : ■Interface Flow Rate Multiplier(ratio) : ■Interface Infill Density(ratio) : ■Interface Layer Thickness over Layer Thickness : ■Interface Layers(integer) : ■Interface Nozzle Lift Over Interface Layer Thickness(ratio) : - Name of Alteration Files - ■Name of Support End File : サポート終了定義G-codeファイル名 ■Name of Support Start File : サポート開始定義G-codeファイル名 ■Operating Nozzle Lift over Layer Thickness(ratio) : - Raft Size - ■Raft Additional Margin over Length(%) : ■Raft Margin(mm) : - Support - ■Support Cross Hatchスイッチ ■Support Flow Rate over Operating Flow Rate(ratio) : ■Support Gap over Perimeter Extrusion Width(ratio) : ■Support Material Choice : ■Support Minimum Angle(degrees) : |

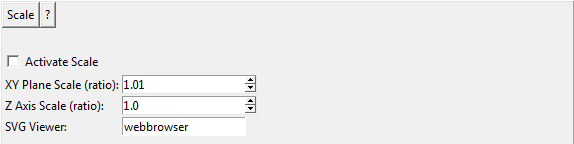

Scale サイズ変更 |
![]() |
■Activate Scaleスイッチ ■XY Plane Scale(ratio) : XY平面のサイズ変更率 ■Z Axis Scale(ratio) : Z軸のサイズ変更率 ■SVG Viewer : |

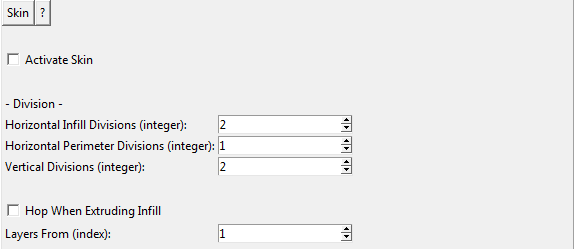

Skin | ![]() |
■Activate Skinスイッチ - Division - |

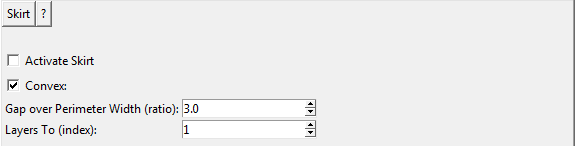

Skirt | ![]() |
■Activate Skirtスイッチ |

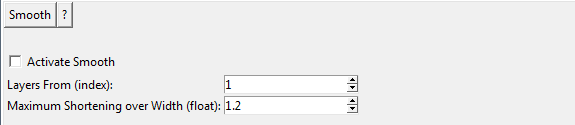

Smooth | ![]() |
■Activate Smoothスイッチ |

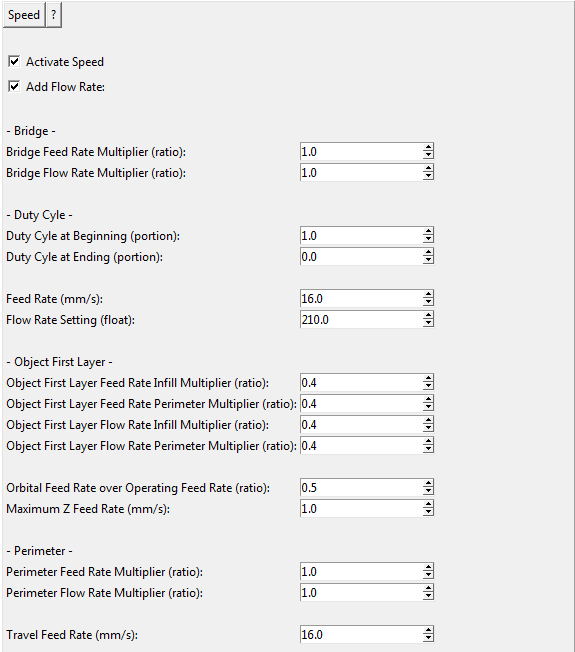

Speed 速度 |
![]() |
■Activate Speedスイッチ ■Add Flow Rateスイッチ - Bridge - ■Bridge Feed Rate Multiplier(ratio) : ■Bridge Flow Rate Multiplier(ratio) : - Duty Cyle - ■Duty Cyle at Beginning(portion) : ■Dute Cyle at Ending(portion) : ■Feed Rate(mm/s) : ■Flow Rate Setting(float) : -Object First Layer - ■Object First Layer Feed Rate Infill Multiplier(ratio) : ■Object First layer Feed Rate Perimeter Multplier(ratio) : ■Object First layer Flow AARate Infill Nultiplier(ratio) : ■Object First Layer Flow Rate Perimeter Multiplier(ratio) : ■Orbital Feed Rate Over Operating Feed Rate(ratio) : ■Naximum Z Feed rate(mm/s) : -Perimeter - ■Perimeter Feed Rate Multiplier(ratio) : ■Perimeter Flow Rate Multiplier(ratio) : ■Travel Feed Rate(mm/s) : |

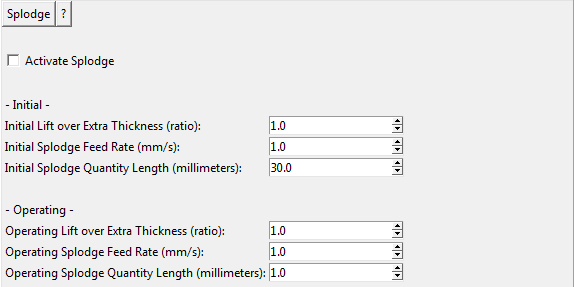

Splodge | ![]() |
■Activate Splodgeスイッチ |

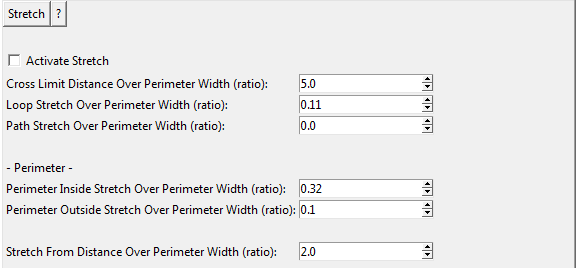

Stretch | ![]() |
■Activate Stretchスイッチ |

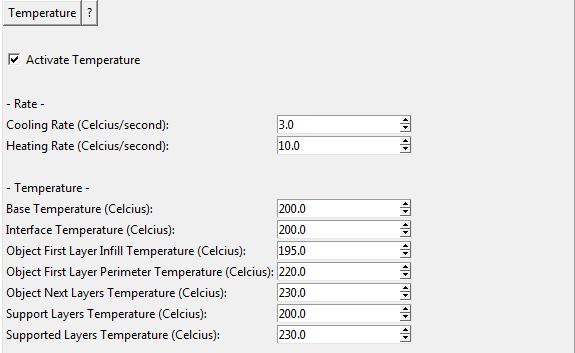

Temperature 温度 |
![]() |
■Activate Temperatureスイッチ - Rate - ■Cooling Rate(Celcius/second) : ■Heating Rate(Celcius/second) : - Temperature - ■Base Temperature(Celdcius) : ■Interface Temperature(Celdcius) : ■Object First Layer Infill Temperature(Celdcius) : ■Object First Layer Perimeter Temperature(Celdcius) : ■Object Next Layers Temperature(Celdcius) : ■Support Layers Temperature(Celdcius) : ■Supported Layers Temperature(Celdcius) : |

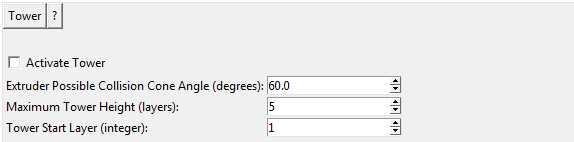

Tower | ![]() |
■Activate Wowerスイッチ |

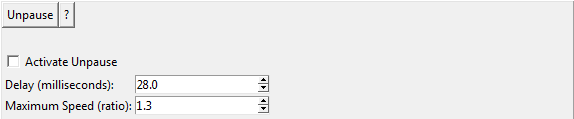

Unpause | ![]() |
■Activate Unpauseスイッチ |
Widen | ![]() |
■Activate Widenスイッチ |

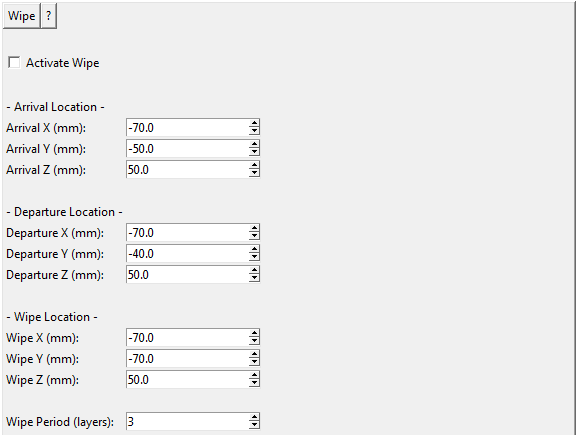

Wipe | ![]() |
■Activate Wipeスイッチ |
